Sparen Sie Zeit und Platz in Ihrem Schaltschrank mit der VarioPlate Kabeldurchführung.
Erfahren Sie mehr über das Verlegen und Abdichten von Kabeln verschiedener Größen mit der VarioPlate.

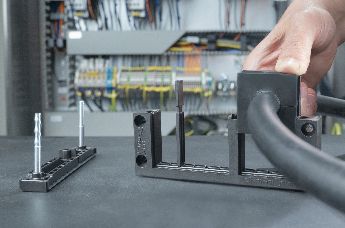

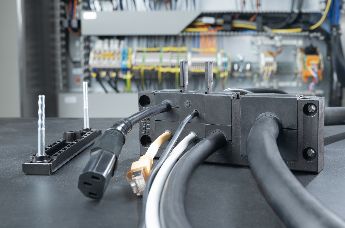

Die VarioPlate Kabeldurchführung wird für die Verlegung von mehreren Kabeln mit unterschiedlichen Durchmessern verwendet. Besonders interessant ist das System der Kabeldurchführung überall dort, wo der Platz begrenzt ist. Des Weiteren kann die VarioPlate mit oder ohne vorkonfektionierten Steckern oder Verbindern zum Einsatz kommen. Die VarioPlate ist in vier verschiedenen Rahmengrößen (24, 16, 10 und 4) erhältlich. Diese entsprechen den gebräuchlichen Ausschnittmaßen im Schaltschrankbau. Kombinierbare Tüllen mit 1, 2 oder 4 Löchern sind für Kabeldurchmesser von 3 - 16 mm (Größe S) und 16 - 33 mm (Größe L) erhältlich.
Sehen Sie in diesem Video wie die VarioPlate eingesetzt wird.

-
VarioPlate-4_Frame
440-00000
VarioPlate Kabeldurchführungsrahmen -
VarioPlate-10_Frame
440-00001
Varioplate Kabeldurchführungsrahmen -
VarioPlate-16_Frame
440-00002
Kabeldurchführungsrahmen -
VarioPlate-24_Frame
440-00003
Kabeldurchführungsrahmen -
VP-S_0_Blindinsert
440-00004
VarioPlateTülle -
VP-S_3-4_Ins-sgl
440-00005
VarioPlate Tülle -
VP-S_4-5_Ins-sgl
440-00006
VarioPlate Tülle -
VP-S_5-6_Ins-sgl
440-00007
VarioPlate Tülle -
VP-S_6-7_Ins-sgl
440-00008
VarioPlate Tülle -
VP-S_7-8_Ins-sgl
440-00009
VarioPlate Tülle -
VP-S_8-9_Ins-sgl
440-00010
VarioPlate Tülle -
VP-S_9-10_Ins-sgl
440-00011
VarioPlate Tülle -
VP-S_10-11_Ins-sgl
440-00012
VarioPlate Tülle -
VP-S_11-12_Ins-sgl
440-00013
VarioPlate Tülle -
VP-S_12-13_Ins-sgl
440-00014
VarioPlate Tülle -
VP-S_13-14_Ins-sgl
440-00015
VarioPlate Tülle -
VP-S_14-15_Ins-sgl
440-00016
VarioPlate Tülle -
VP-S_15-16_Ins-sgl
440-00017
VarioPlate Tülle -
VP-S_2/4-5_Ins-dbl
440-00018
VarioPlate Tülle -
VP-S_2/5-6_Ins-dbl
440-00019
VarioPlate Tülle -
VP-S_2/6-7_Ins-dbl
440-00020
VarioPlate Tülle -
VP-S_2/7-8_Ins-dbl
440-00021
VarioPlate Tülle -
VP-S_4/4-5_Ins-quad
440-00022
VarioPlate Tülle -
VP-S_4/5-6_Ins-quad
440-00023
VarioPlate Tülle -
VP-L_16-17_Ins-sgl
440-00024
VarioPlate Tülle -
VP-L_17-18_Ins-sgl
440-00025
VarioPlate Tülle -
VP-L_18-19_Ins-sgl
440-00026
VarioPlate Tülle -
VP-L_19-20_Ins-sgl
440-00027
VarioPlate Tülle -
VP-L_20-21_Ins-sgl
440-00028
VarioPlate Tülle -
VP-L_21-22_Ins-sgl
440-00029
VarioPlate Tülle -
VP-L_22-23_Ins-sgl
440-00030
VarioPlate Tülle -
VP-L_23-24_Ins-sgl
440-00031
VarioPlate Tülle -
VP-L_24-25_Ins-sgl
440-00032
VarioPlate Tülle -
VP-L_25-26_Ins-sgl
440-00033
VarioPlate Tülle -
VP-L_26-27_Ins-sgl
440-00034
VarioPlate Tülle -
VP-L_27-28_Ins-sgl
440-00035
VarioPlate Tülle -
VP-L_28-29_Ins-sgl
440-00036
VarioPlate Tülle -
VP-L_29-30_Ins-sgl
440-00037
VarioPlate Tülle -
VP-L_30-31_Ins-sgl
440-00038
VarioPlate Tülle -
VP-L_31-32_Ins-sgl
440-00039
VarioPlate Tülle -
VP-L_32-33_Ins-sgl
440-00040
VarioPlate Tülle -
VP_3-5_Blindplug
440-00041
VarioPlate Kabeleinführungsrahmen -
VP_5-7_Blindplug
440-00042
VarioPlate Kabeldurchführungsrahmen -
VP_7-9_Blindplug
440-00043
VarioPlate Kabeldurchführungsrahmen -
VP_9-11_Blindplug
440-00044
VarioPlate Kabeldurchführungsrahmen -
VP_11-13_Blindplug
440-00045
VarioPlate Kabeldurchführungsrahmen -
VP_13-15_Blindplug
440-00046
VarioPlate Kabeldurchführungsrahmen -
VP_15-16_Blindplug
440-00047
VarioPlate Kabeldurchführungsrahmen -
VP_Mounting_Tool
440-00048
VarioPlate Montagehilfe -
VP_S_5_Blindplug
440-00049
VarioPlate Kabeldurchführungsrahmen -
VP_S_7_Blindplug
440-00050
VarioPlate Kabeldurchführungsrahmen
Die Vorteile der Kabeldurchführung auf einen Blick:

- Modulares Design spart Zeit und Platz
- Einfach zu montieren und anzupassen
- Integrierte Rahmendichtung erreicht Schutzklasse IP66
- Kleine und große Kabeldurchführungen in einem Rahmen kombinierbar
- Einsätze enthalten geformte Zugentlastungshalterung
- Das Design des Einsatzlochs gleicht Toleranzen im Kabeldurchmesser aus
- Geeignet für alle gängigen Ausschnittgrößen
- IP65 und IP66 zugelassene Konstruktion
