25/06/2022

Zubehör für Autotool CPK hybrid
Art.-Nr. 106-00065 | Bandolier-deviation-CPK-PA12-BK Details

  • Montagevorrichtung CPK für stationären Einsatz
  • Hängevorrichtung CPK für flexiblen Einsatz
  • Legehilfe HH20 hebt das Bündelgut vom Legebrett in eine optimale Höhe. Dies ermöglicht die Befestigung von Kabelbindern ohne zusätzliches Halten des Bündelgutes
  • Kraftmessvorrichtung CPK zur linearen Ermittlung der Zugkraft des Autotool CPK. Verfügbar mit Griffaufnahme oder Roboter Adapter

Fragen Sie Ihr individuelles Angebot an

 Online Shop wählen

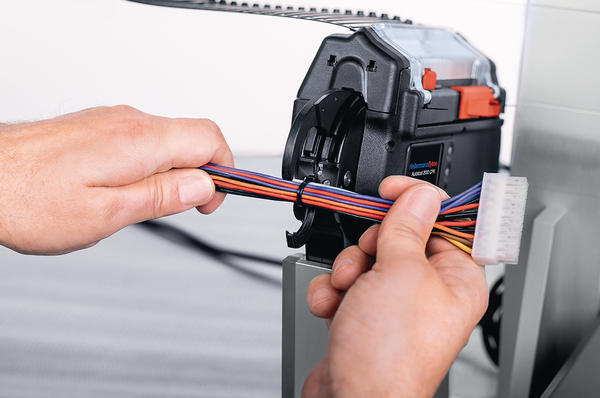

Anwendung The Autotool CPK hybrid T18RA is an automated cable tying system that is either operated electrically with a Power pack or with a battery. It has been developed to speed up bundling processes and to make the production more consistent and efficient. Besides the high speed bundling, this cable tying system is characterized by its simple operation and user-friendly ergonomics. The CPK hybrid offers a display for the settings and presets and user information in 20 languages. One main feature of the CPK hybrid is the software "HT Data Management CPK". This feature enables the easy parameterization of the tool for customers applications. The parameterization can easily be carried out via computer. Additionally the "HT Data Management CPK" offers an export function for the saved manufacturing data as well as further service functions. Therefore it ensures a consistent documentation for every binding process through the tool. The firmware of the CPK hybrid tool enables various bundling and cutting functions. It is possible to define a loop diameter and to choose the length of an extended strap as an example. The function to cut with the tension released is of great value especially for applications with a very flexible bundling good (like silicone cables). The CPK hybrid is ideally suited for handling high volume applications in wire harness facilities, automotive and industrial companies, in the packaging sector and in the solar industry. With either the Bench mount kit CPK or the Overhead suspension CPK, the CPK hybrid is suitable for both stationary and flexible applications. By using the optional Power pack CPK with control box the CPK hybrid can be integrated into fully automated production lines through a serial interface. Due to the removable handle less assembly space is needed. When using the battery at the bottom of the handle the tool can be used without the need for a power supply. Bandoliers of 50 cable ties as well as reels of 3,500 cable ties can be used.
Bezeichnung Autoool CPK hybrid
Farbe Schwarz (BK)
für Kabelbinder Kunststoff
Inhalt 1ST
Inhalt per Stück
Kurzbeschreibung Zubehör für das automatische Bündelsystem Autotool CPK hybrid
Legehilfe Abstandshalter zum optimalen Bündeln mit dem Autotool CPK hybrid, max. Ø 20 mm, Bündelhöhe 45-25 mm
Material Polyamid 12 (PA12)
Netzgerät Eingang: 240/115 V a.c, 50/60 Hz, Ausgang: 48 V d.c., max. 150 W
Produktbezeichnung Bandolier-deviation-CPK-PA12-BK
Produktfamilie Zubehör für Autotool CPK hybrid
Produktgruppe Automatisches Bündeln bis Ø 20 mm
ELV konform Ja
Gefahrgut Nein
Zulassungen/Normen
Bestelleinheit (ERP) ST
EAN / GTIN 4031026621661
Mindestbestellmenge 1
Ursprungsland DE
Zollwarentarif Nr. 84679900
ETIM 7.0 EC000453
